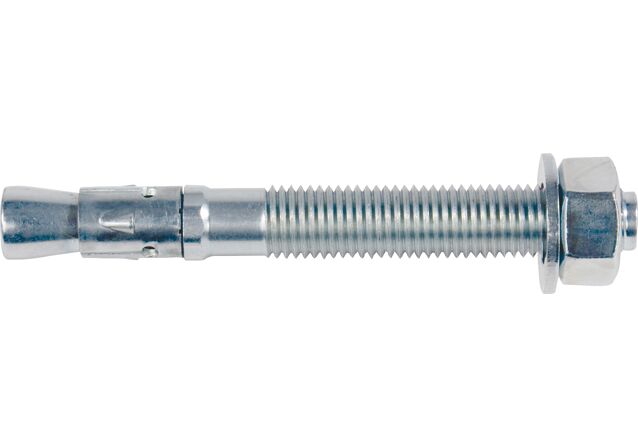

Upat Express Anchor IMC 16/15/118 K gvz Short Version gvz

Name: Upat Express Anchor IMC 16/15/118 K gvz Short Version gvz
Brand: Upat

Product Variant

Download image data

Top features

Short version reduces drilling effort and provides a purchasing advantage.
Labour-saving setting with a minimal number of fixing points and low installation effort.
Easy installation prevents installation errors and saves time.
Head embossing enables the easiest post-control.

The cost-effective specialist - The short galvanised bolt anchor for flexible installation in non-cracked concrete for indoors.

Advantages

Secure anchoring: ETA approval Option 7. Versatile use for secure anchoring in uncracked concrete
Near-edge fastening: The unit of cone and expansion clip allows for minimal edge and axial distances
Easy installation: Shaft with optimized diameter for low insertion energy.
Protected thread: Pronounced insertion pin protects the thread from damage during installation
Secure post-installation inspection: The head embossing allows for post-installation inspection
Safe insertion: The clip remains in position during insertion even with reinforcement hits and unfavorable drill holes

Material

Stainless steel (R/A4): For fastening outdoors or in damp rooms
Galvanised steel (gvz): For fastening in dry indoor areas

Variant

Short (K): The short version of the bolt anchor reduces the drill hole depth and the risk of hitting reinforcement, enabling quick installation while saving costs
Large washer (GS): The large washer protects the surface of the attachment and prevents cutting into wood.

The Upat express anchor bolt IMC is a true powerhouse and a cost-effective alternative among bolt anchors. This steel anchor is particularly suitable for fastening medium to heavy loads in uncracked concrete and dense natural stone. The express anchor bolt IMC is commonly used for fastening barriers, benches and pumps, for example.

Properties

Certification/Approval: ETA Option 7 Concrete uncracked
Load Range: Tension load 2.9-25.2 kN, shear load 6.9-38.6 kN
Material: Stainless Steel (R), zinc plated steel (gvz)
Variant: Standard, Short (K), large washer (GS)
Feature: Thread M6-M20, usable length 5-300mm
Accessories: Blow-out pump UPM AB

Functioning

Function: When tightening the nut, the bolt pushes into the expansion clip, which expands against the borehole wall

Installation: The Upat express anchor IMC is installed in through-setting mounting. Create borehole, clean borehole. Drive in anchor bolt. Tighten torque - done. Bolt diameter equals borehole diameter

Tools: Drill, drilling machine, blow-out pump (UPM AB), hammer, torque wrench

1 / 5

ETA-approval
Drill diameter ( d₀ )	16 mm
Anchorage depth (standard) ( h_{ef, stand.} )	65 mm
Anchorage depth (reduced) ( h_{ef, red.} )	65 mm
Max. fixture thickness (standard) ( t_fix )	15 mm
Max. fixture thickness (reduced) ( t_fix )	15 mm
Min. drill hole depth for through fixings ( h₂ )	104 mm
Width across nut	24 mm
Washer (outer diameter x thickness)	30 x 3 mm
Imprint on head	C
Installation torque ( T_inst )	100 Nm
Amount	20 pcs
GTIN (EAN-Code)	4000657005751
