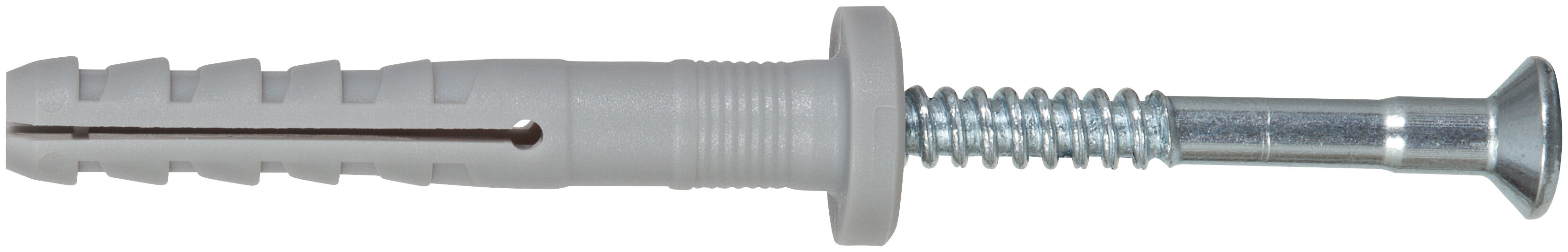

UN 8 x 120/80 F

Name: UN 8 x 120/80 F
Brand: Upat

Product Variant

Download image data

Top features

Fast and easy - Time-saving processing thanks to the pre-installed nail screw.
Secure impact anchor - A hammer-in stop prevents premature expansion during installation.
Highest flexibility - The nail screw can be removed again to adjust and disassemble the component.
Extensive assortment - The flat-head makes it particularly suited for metal constructions.
Suitable for push-through installation.

The proven hammerset plug with flat head for easy and secure, fast installation.

Advantages

Upat nylon quality: Robust - durable - recyclable
Quick installation: Tapered nail anchor shaft, serrated thread, and pre-assembled nail screw enable efficient processing
Secure application: Impact lock, reinforced rim, and compensating ribs ensure safe use of the nail anchor
Easy adjustment: Cross-slotted drive nail screw for adjusting and dismantling the component
Firm grip: The precisely matched expansion zone provides high expansion and firm grip

Variant

Flat head (F): For fastening thin materials and impact resistance
Countersunk head (S): For a visually appealing and flush fastening

The quick-impact dowel for fast installation. Suitable for concrete and solid building materials. For light loads. Available product variants: flat head (F) and countersunk head (S). Selectable product features: drill diameter 5–8 mm, dowel length 30–120 mm and effective length 5–80 mm. Set in through-hole installation. Features Upat nylon quality, quick installation and safe use. Used, for example, for fastening wooden substructures, cable ducts and letterboxes.

Properties

Building material: Concrete, solid construction
Load range: Tension load, shear load, and oblique load 0.16-0.27kN
Material of anchor: Nylon
Material of nail screw: Zinc plated steel (gvz)
Variant: Countersunk head (S), flat head (F)
Feature: Drill diameter 5-8mm, anchor length 30-120mm, usable length 5-80mm

Functioning

Function: The nail anchor is supplied pre-assembled and can be directly driven into the borehole. The reinforced anchor rim prevents the nail anchor from penetrating through. The tapered anchor shaft allows for easy insertion of the anchor. The sawtooth thread of the nail screw is easy to drive in and simple to unscrew. The nail anchor expands when the nail screw is driven in and holds due to the pressure against the borehole wall. The cross slot drive allows for adjustment and disassembly of the component.

Installation: The Upat Nail Anchor UN is installed in the pusht hrough installation. Create the borehole, drive in the nail anchor - done.

Tools: Drill, drill machine, hammer.

1 / 4

Drill diameter ( d₀ )	8 mm
Min. effect. anchorage depth ( h_ef )	40 mm
Anchor length ( l )	120 mm
Min. drill hole depth ( h₁ )	135 mm
Max. fixture thickness ( t_fix )	80 mm
Amount	100 pcs
GTIN (EAN-Code)	4000657017907
